| Product information | |
|---|---|
| Input/output power rating and current | 12kW (240V AC*50A)Output amperage adjustable via mobile app, from 6A to 50A |
| Input/output voltage | 208V±15%; 240V±15%, 60Hz |
| Network type | L1/N+PE, L1/L2/PE |
| Input Cord | Hardwired |
| Connector Type | SAE J1772, 7.5m (25′) |
| Ground Fault Detection | 20mA CCID |
| Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
| Card Reader | Optional: ISO 15693, ISO 14443, NFC |
| Power Measurement Accuracy | +/- 1.0% from 1% to full scale |
| General characteristics | |
| Enclosure Rating | NEMA 4 |
| Operating altitude | 2000m |
| Operating temperature range | -40℃~+55℃ |
| Storage temperature range | -40℃~+85℃ |
| Mounting | Wall or floor using a pedestal |
| Dimensions (H×W×D) | 18.4″ x 17.1″ x 6.6″ |
| User interface | |
| Status indication | LED/APP |
| User interface | Autel Charge APP; Autel Charge Cloud |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (for energy meter connection) |
| Communication protocols | OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later) |
| User authentification | APP, AutoStart, RFID card |
| Software update | |
| Software update | OTA updates via web portal |
| Certification and standards | |
| Safety and Compliance | UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916 |
| EMC Compliance | FCC 15 Class B |
| Certification | Energy Star, OpenADR 2.0b |
| Warranty | 36 months, warranty extension possible |

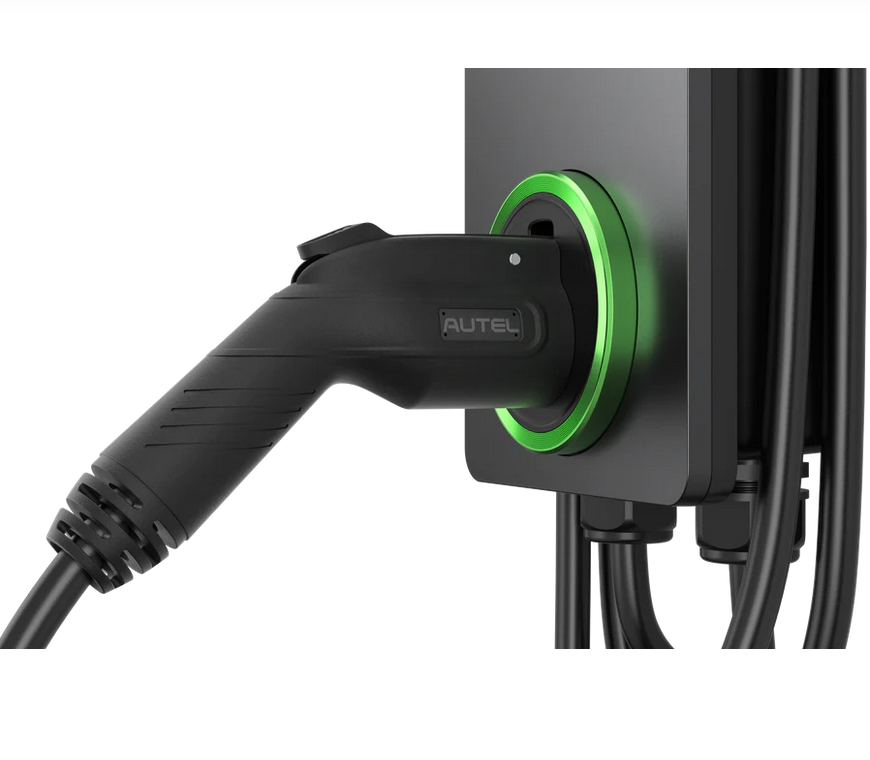

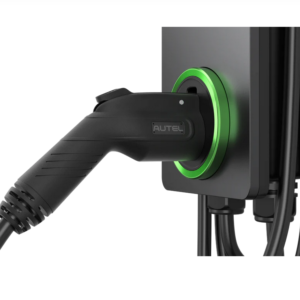

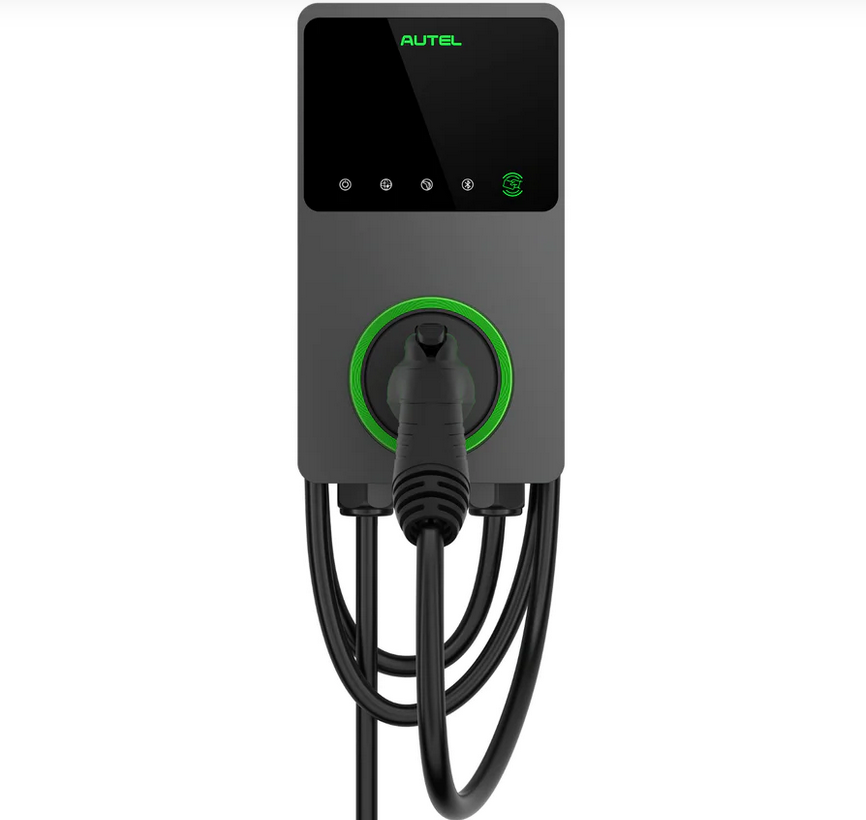

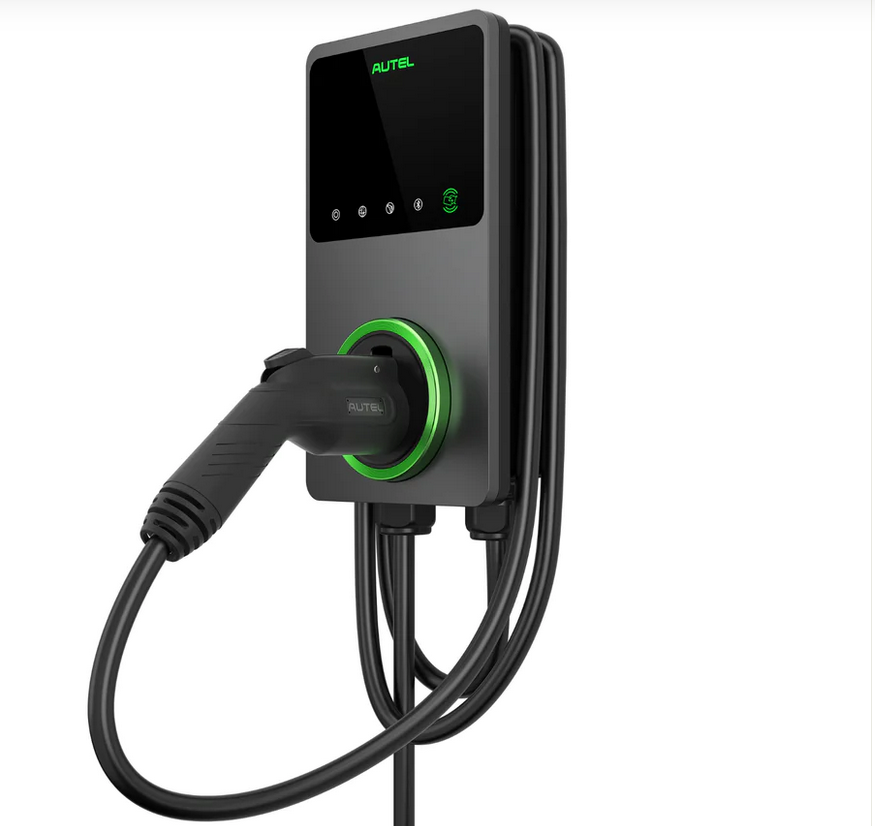

US – MaxiCharger Home 50A – AC Wallbox EV Charger With In-Body Holster
Liên hệ
- Compatible with all EV and Hybrid Plug-in Vehicles
- 25ft long Universal (J1772) Charging Cable & Hardwired installation
- Contemporary Design, Dark Gray
- Adjustable charging up to 50 Amps
- In-body holster
- For residential use only
- Autel Charge app enables remote start, stop, monitoring and scheduling
- Specially designed for Indoor or Outdoor use
- Wi-Fi / Bluetooth / Ethernet / CAN / RS485 connectivity
- Three years limited warranty
Maxi US AC W12
